WNGA080404T02020-3 YZB221 10 Pieces

Part Number: WNGA431T02020-3 YZB221

ISO Type: WNGA080404T02020-3

Number of PCBN Tip: 3, Grade: YZB221

Edge Profile and Finishing: T (standard, chamfering )

Grade Description: Fine carbide substrate brazed with low PCBN content tip

Workpiece Material (ISO Class): Hardened Steel (K10-K25)

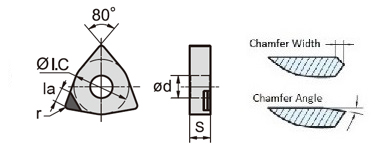

Dimension (mm): ΦI.C.=12.7, S=4.76, Φd=5.16, r=0.4, la=2.0

Chamfer Width: 0.2mm, Chamfer Angle: 20˚

Application:  This insert has a 3 brazed PCBN tip with chamfering and honing. It offers superb wear and heat resistance,  and is ideal for medium application in grey cast iron, nodular cast iron and Ni/Cr basic alloy., also in light interrupted cut. Good wear resistance and thermal conductivity.

Note:  1. Product sold in packs of 10 units.

           2. Order Quantity >50pcs, Free Shipping. Order Amount >200 Us Dollars Free Shipping

           3. Mix Order Acceptable.
